Traffic Door Canada: Why Food and Warehouse Sites Need Different Door Specs

A traffic door in a food plant and a traffic door in a dry warehouse may look similar from the aisle, but the specification should not be the same. Food operations add washdown, sanitation, temperature control and corrosion concerns. Warehouses may place more emphasis on pallet impact, forklift visibility, opening size and rapid replacement after damage.

For Canadian facilities comparing a traffic door in Canada, the useful starting point is the traffic that actually crosses the opening. Personnel, carts, pallet jacks and motorized forklifts create different impact energy, sightline and hinge demands.

Count traffic before choosing panel thickness

Observe the opening during a normal and peak shift. Record crossings by traffic type, direction, queueing and common impacts. A door that sees occasional staff movement needs less impact resistance than one struck by loaded pallet jacks every few minutes.

Opening dimensions and approach angles matter. Traffic that turns immediately before the door is more likely to hit edges and panels off-centre. Protecting the frame with bollards and improving floor markings may reduce damage more effectively than simply making the door heavier.

Cold-food openings need a complete seal strategy

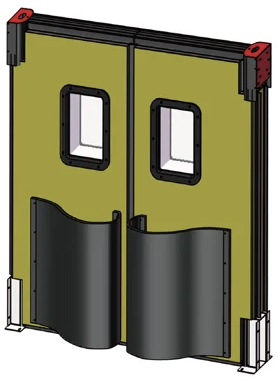

TDK Doors describes the HE100 as a fully sealed, four-inch insulated panel with heavy-duty V-cam hinges and rollers. Its double-gasket design covers all four sides and is positioned for cooler applications. The HE50 uses a 1 7/8-inch insulated panel with heavy-duty hardware and is listed for personnel, carts, pallet jacks and motorized forklifts.

Panel thickness contributes to thermal performance, but the installed opening also depends on perimeter contact, gasket condition, floor level, hinge return and how long panels remain displaced by traffic. A warped frame or worn hinge can create more infiltration than the nominal panel R-value suggests.

Facilities should measure temperature and humidity on both sides, identify frost or condensation history and decide whether the traffic door is the primary thermal barrier or a secondary door. For freezers and large temperature differences, the complete entrance may need additional doors or air-management measures.

Washdown changes material and detailing

Food-processing areas should be reviewed by the sanitation team. Panel skins, gaskets, hinges, windows, fasteners and frame interfaces need to withstand the actual cleaning chemicals, water pressure and frequency. Crevices that retain soil are a problem even when the surface material is corrosion-resistant.

Ask how the door is cleaned, which components can be removed, where water drains and whether the panel core remains sealed after repeated impact. Inspection should include damaged skins and edges because a small opening can allow moisture into the panel.

TDK lists washdown and corrosion resistance among the intended environments for several traffic-door models. A site-specific review still needs to confirm compatibility with the plant's chemicals and sanitation standard.

Warehouse traffic puts visibility and impact first

In a warehouse, a loaded forklift has limited stopping distance and the driver may not see traffic on the other side. Windows should be positioned for the actual equipment and operator eye height, remain clear and provide enough viewing area. Scratched or fogged windows are a maintenance issue, not a minor cosmetic defect.

Panel and edge reinforcement should match likely impact. The PL38V, for example, is described with a 1.5-inch insulated foam-core panel, ABS finish, reinforced spine and heavy-duty V-cam hinge for personnel, carts and motorized pallet jacks. The PL24E is a medium-duty ambient traffic door for lighter movement.

Choosing the heaviest panel everywhere can increase opening force and stress on hardware. Match duty to traffic, then ensure hinges return the panel reliably without creating a closing hazard.

Facilities can review TDK Doors Canada and the company's industrial traffic door models to compare insulated, medium-duty and lighter-duty options.
